Electrical Control System of Plasterboard Production Line

Electrical control system applies a centralized and on-site method, with what energy consuming status is directly displayed and is convenient to be analyzed and optimized. The system is usually applied in production lines of which the devices are split, making the production line more reliable and effective.

• Remote diagnosing and testing on working status of devices;
• Fail-safe CPU: fast-recovery when malfunctioning occurs, assuring safety；
• Convenient operating;

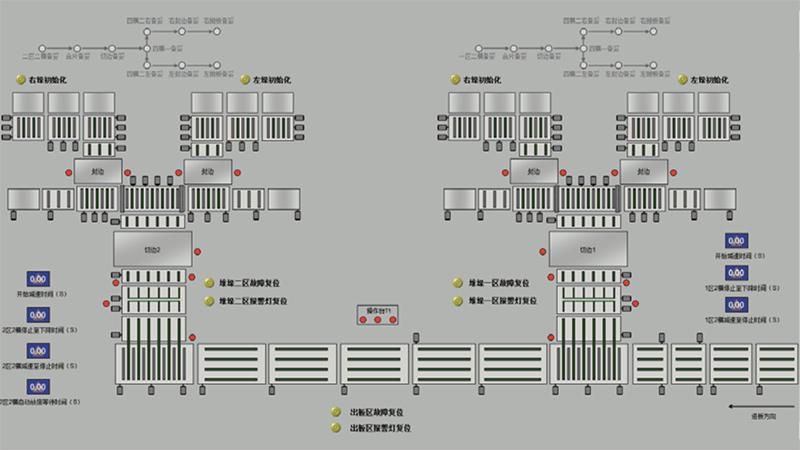

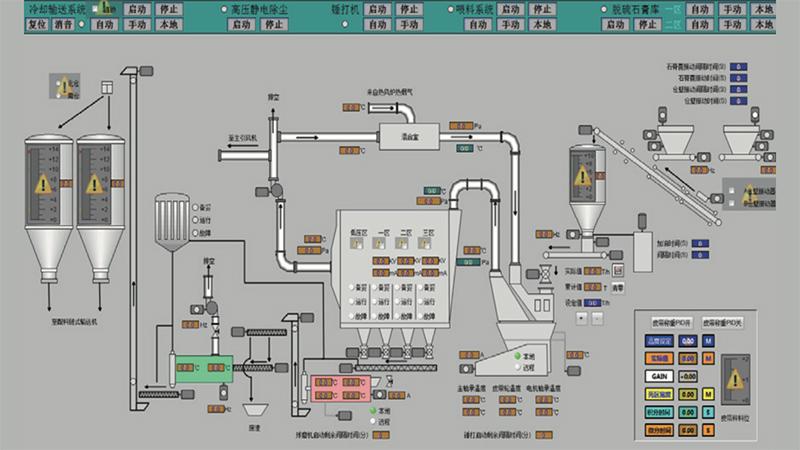

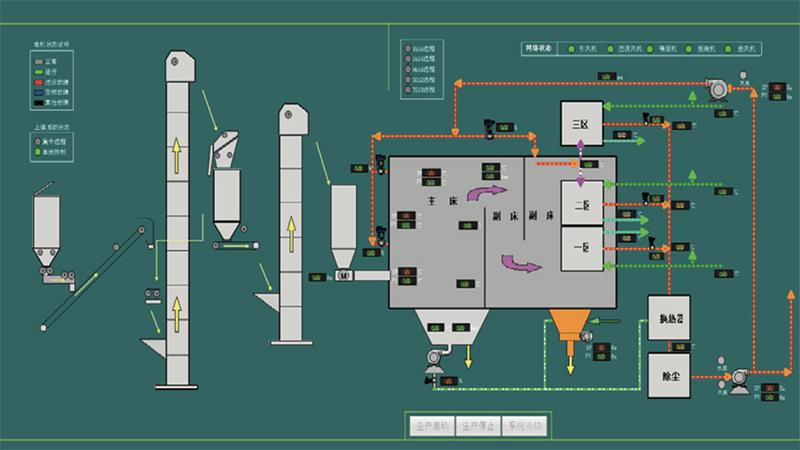

• Functions including running data filing and saving, alarm message affirming, operating actions saving, device running status dynamically displaying, etc.;
• Professional energy management software, clearly showing energy consuming status during running;
• Safe and convenient remote service function, timely responding when malfunction occurs;
• Production monitoring via Internet;

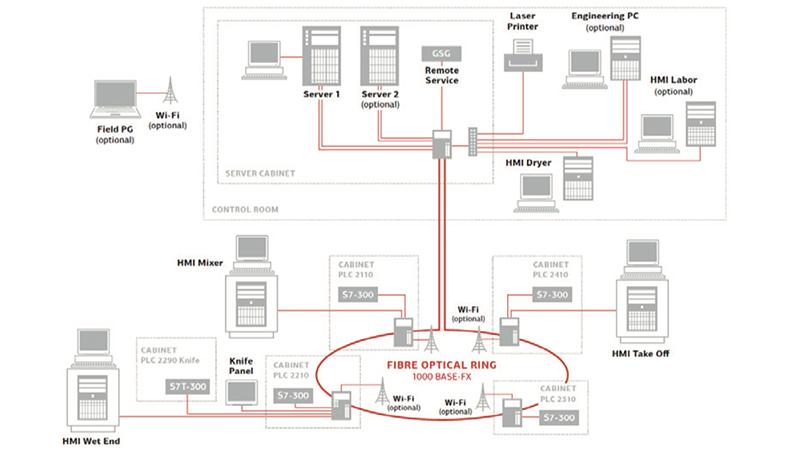

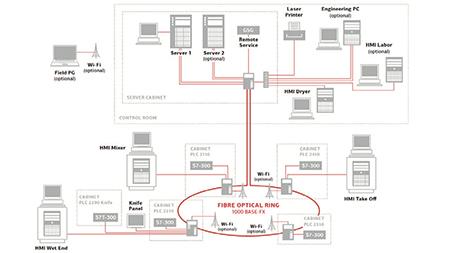

• Reliable, maintenance-convenient, extension-convenient on-site bus system, PLCs are linked via optical fiber ring network;
• 4 PLC stations in total, according to procedures, all equipped with master computers, maintenance with engineering station. Optional redundant server system.
• PLC system configured according to customer’s requirement; SIMATIC S7-1500 or AB CompactLogix series are applied in common configures.
